How Do Ultrasonic Sensors Work and Interface with Arduino for Distance Measurement?
In this tutorial, we will delve into the process of connecting an ultrasonic sensor to an Arduino board and displaying distance measurements on an LCD. This guide aims to provide a detailed understanding of the setup, operation, and coding involved in this project.
Components Required:
Before we begin, gather the following components:
- Arduino board (e.g., Arduino Uno)
- HC-SR04 Ultrasonic Sensor
- I2C LCD Display (e.g., 16x2 characters)
- Jumper wires
Understanding the HC-SR04 Ultrasonic Sensor:
The HC-SR04 ultrasonic sensor consists of four pins:
- VCC: Supply pin
- GND: Ground pin
- Trig: Trigger pin
- Echo: Echo pin
We’ve utilized the HC-SR04 with Arduino, Raspberry Pi, and PIC microcontroller for various projects, including:
- Distance measurement with Arduino
- Interfacing HC-SR04 with PIC microcontroller
- Raspberry Pi obstacle-avoiding robot
- IoT dumpster monitoring with Arduino & ESP8266
Working Principle:
The ultrasonic sensor operates by emitting high-frequency sound waves and detecting their reflections. It comprises a transducer, which both emits and receives ultrasonic waves, along with signal processing circuitry to measure the time taken for the waves to travel and return.
Circuit Connection:

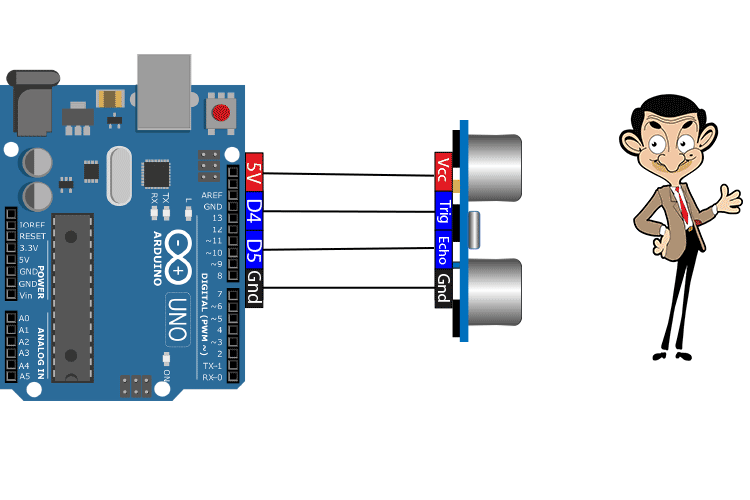

Connect the ultrasonic sensor’s trig and echo pins to Arduino pins 4 and 5, respectively. This configuration allows the Arduino to trigger the sensor and measure the time taken for the echo pulse to return.
Arduino Code for Ultrasonic Sensor:
The Arduino code initializes serial communication and sets up the trigger and echo pins. It then triggers the sensor, measures the duration of the echo pulse, and calculates the distance based on the speed of sound. The distance measurement is displayed on the Serial Monitor.
Adding an LCD Display:
To enhance the project, connect an I2C LCD display to the Arduino. Utilize the SDA and SCL pins (A4 and A5 for Arduino Uno) for communication, along with VCC and GND. The LCD will provide real-time distance measurements alongside the serial output.
Practical Applications:
Explore various projects utilizing ultrasonic sensors, such as:
Interfacing with Raspberry Pi Pico for distance measurement.
Building a smart blind stick for visually impaired individuals.
Implementing an IoT-based smart dustbin management system using NodeMCU.
This comprehensive guide offers detailed insights into interfacing an ultrasonic sensor with an Arduino and displaying distance measurements on an LCD. By following the steps outlined here, you can gain a better understanding of ultrasonic sensor operation and embark on exciting projects leveraging this technology.
Complete Tutorial: https://youtu.be/bOZ5QdASm30
